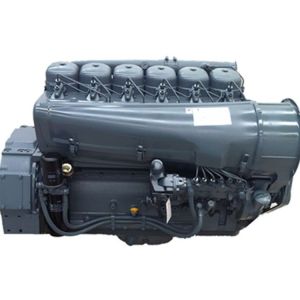

Deutz 913 Series Engine
Deutz 913 Series Engine
Air-cooled 3-, 4-, 5-, 6-cylinder naturally aspirated in-line-engines.
• DEUTZ-direct injection.two-stage combustion.
• Advanced injection and combustion system.
• PTOs via gear, V-belt and crankshaft.
• Extremely compact design.
• High torque at low speeds.
• Modular system with single cylinder arrangement and high degree of parts commonality
• Customized component system with many different peripheral parts.
• Cold-starting ability even under extreme climatic conditions.
• DEUTZ-direct injection.two-stage combustion.
• Advanced injection and combustion system.
• PTOs via gear, V-belt and crankshaft.
• Extremely compact design.
• High torque at low speeds.
• Modular system with single cylinder arrangement and high degree of parts commonality
• Customized component system with many different peripheral parts.
• Cold-starting ability even under extreme climatic conditions.
| 413 series TECHNICAL SPECIFICATIONS | ||
| Model | F4L913 | F6L913 |
| Configuration | Vertical in-line, 4-stroke, direct injection, air-cooled | |
| Cyliner No. | 4 | 6 |
| Bore*Stroke (mm) | 102*125 | |
| Aspiration | Natural intake | |
| Displacement (L) | 4.086 | 6.02 |
| Compression ration | 17.0:1 | |
| Rated power/Speed (kW/r/min) | 56/2500 | 84/2500 |
| Fuel consumption g/(kW*h) | 221 | 221 |
| Max torque at 1500RPM | 250 | 370 |
| Idle speed(RPM) | 700 | |
| Starting method | Electric | |
| Dry weight (kg) | 310 | 470 |
